Spray Gun Machines

Leading Manufacturers, Exporters and Wholesaler of 100kV Powder Coating Spray Gun Machine, Manual Powder Coating Spray Gun Machine and Steel Powder Coating Spray Gun Machine from Ludhiana.

Business Type Manufacturer, Exporter, Supplier
Brand Name BSJS
Material Mild Steel
Driven Type Electric
Automatic Type Manual
Application Industrial Use
Voltage 220-440V
Warranty 2 Years
Country of Origin India
Output Voltage 100 kV
Electricity Connection Single Phase

Click to view more

Preferred Buyer From

Location India ( Chandigarh, Haryana, Himachal Pradesh, Jammu & Kashmir, Punjab only) & All other countries

Powder Coating Machine JH-605The whole set includes: Controller + manual spray gun + high quality venturi sub-pump + 304 stainless steel powder hopper + one set trolley + powder feeding hose, 4 meters gun cable, air tubes + high-end oil-water separator + pressure regulating valve

1) Good for flat and complex spaces, any place will be coated efficiently.
2) Deep inside part will be coated well with extension nozzle.
3) Easy operation, reliable and efficient, suitable for both beginners and advanced users.
4) Hopper protects powder from the ambient and gently fluidizes it for an ideal powder delivery.
5) Can choose different hopper for small or big production, or lab use.

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier
Brand Name BSJS
Automatic Type Manual
Application Industrial Use
Country of Origin India
Input Voltage 220 V
Frequency 50 Hz
Phase Single Phase
Output Voltage 100 kV
Hopper Capacity 10kg
Temperature Range in Use -10 to 50 Degree
Reted Output Voltage 24V DC
Max. Output Current 100ua ( Max.)
Max. Powder Injection 600g/min
Polarity negative (-)

Click to view more

Preferred Buyer From

Location India ( Chandigarh, Haryana, Himachal Pradesh, Jammu & Kashmir, Punjab only) & All other countries

Request to Call

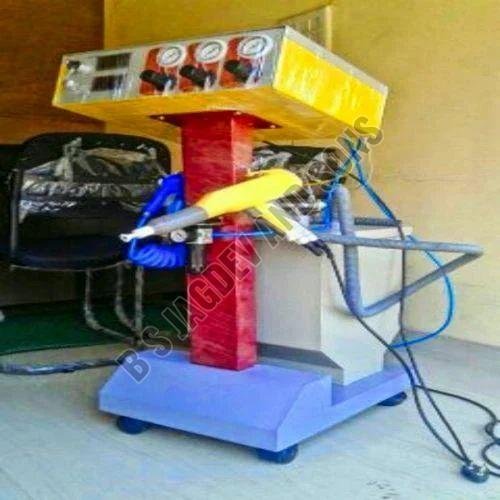

Business Type Manufacturer, Exporter, Supplier
Brand Name BSJS
Driven Type Electric
Automatic Type Manual
Application Industrial Use
Warranty 2 Years
Country of Origin India
Hopper 10kg
Gun Weight 450g
Input Power 220-240V
Frequency 50Hz
Container Capacity 10kg
Air-Flow Direction Fully Undershot Type
Max Powder Consumption 650 g/min
Material to Be Coated Steel

Click to view more

Preferred Buyer From

Location India ( Chandigarh, Haryana, Himachal Pradesh, Jammu & Kashmir, Punjab only) & All other countries

We provide Electrostatic Powder Coating Equipment to our valuable clients.

Features:

  • Maximum operating safety/Easy maintenance
  • Automatic Voltage Fold Back
  • Low Faraday Cage Effect.
  • Flexible Cord with Silicone Rubber pipe for Powder outlet.
  • Optional nozzles (Flat/Round)/ deflectors in different pattern are parts of standard equipment.
  • New powder control block / pump for better powder flow & longer venture life.
  • In-built gun Nozzle Rinsing Air System.
  • S.S. Hopper optional
  • New outside path-external powder way gun compatible system



Read More...
