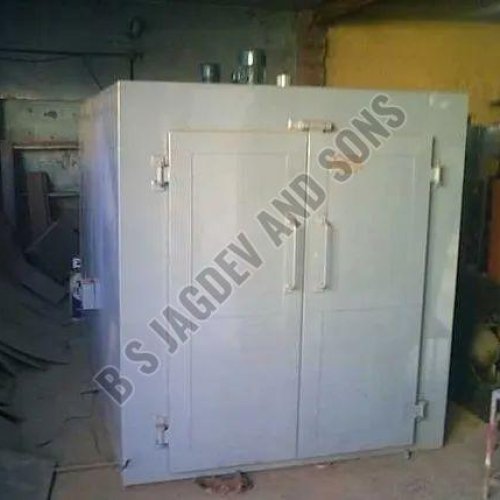

Drying Ovens

We are the leading company manufacturing a wide range of Tray Drying Oven.

Features:-

• Double walled unit mounted on a sturdy angle iron frame.
• Inner and outer made up of heavy M.S. Sheet.
• The outer body is hammer tone painted.
• Supplied with Aluminum trays as per tray capacity of the unit.
• The inner body is painted with high-temperature aluminum paint.
• The gap between the two walls is filled with high-grade glass wool to minimize thermal loss.
• Brackets to support the heavily laden drying trays at adjustable height are provided on the sides of inner walls.
• Heating is brought about by strip type air heaters.
• Temperature is controlled by Microprocessor Based PID Digital Temp. Indicator-cum-Controller with an accuracy of + 1^oC.
• Ventilation is provided with the adjustable opening at the top to exhaust the fumes or vapors produced during processing.
• Heavy duty 'V' belt driven motor of suitable capacity provides forced air circulation so as to ensure uniform heating throughout the inner chamber.
• A separate control panel is fitted to the chamber with individual control for ON / OFF and air circulating fan.

Owing to our expertise in this field, our firm is engaged in supplying an extensive array of SS Tray Dryer Oven.

We manufacture a wide range of Drying Oven that is widely used for heating, aging, drying, and many more purpose. Our range of these ovens is designed for parallel placement of the material that results in increase in production and saves batch timing by convenient loading and unloading. This types of Tray Dryer is available with external temperature control panel, and high temperature can also be fabricated. Owing to the superior quality of our products, our range of these products is widely demanded in the market. Moreover, these ovens are available in various sizes and models to choose from. Feature at glance of tray dryer Designed for uniform circulation of hot air in the drying chamber. Available in wide-ranging models from 12 to 192 trays capacity. Electrical or Steam or thermic fluid heating system available. Temperature controlled by thermostat provided with the unit.

As engaged in the profound business of offering Industrial furnaces, we have introduced the Industrial Water Drying Oven. Manufactured as per the industry approved norms using the latest technology and qualitative components, these ovens are capable of delivering flawless performance in their applications. Having user-friendly operational features, our offered range has become customers’ favorite.

Features:

• Easy to use


• Optimum performance


• Reduced maintenance cost

Industrial Heat-Dry Ovens for Manufacturing and LaboratoriesA drying oven is a heated chamber used to remove water, moisture, and other solvents from objects. These ovens typically have a fan or turbine which sparks the convection process that heats and dries the materials inside.

We At B.S.JAGDEV & SONS are Leading manufacturer and exporter of Motor Winding Heating Oven from India. Motor Winding Heating ovens are employed for a quick and uniform drying of solvents or water paints and resins used in the windings of electric motors and transformers.

Features :

• Treatment chamber


• Gas burner


• Combustion chamber with heat exchanger


• Recirculation fan


• Gas extraction fan


• Electric board


• Accessories (trolleys or baskets – optional)

The Industrial Drying oven is designed to provide a cost effective solution for the various drying requirement in industries. The oven can maintain a range of temperature between 50°C to 300°C/400°C to carry out varying drying needs. The stainless steel construction and mineral wool insulation provides effective insulation to the oven to prevent any heat loss from the equipments.

Standard Features

• Triple walled protection


• Outer wall coated with Mild Steel Sheet Powder


• Stainless steel tray


• Inner chamber constructed of high grade stainless steel material


• High Grade Mineral Wool insulation


• Air Ventilator at top of oven


• Door fitted with handle and heavy duty hinges


• Heavy Duty Gasket Fitted At Door


• Integrated With Air Circulation Fan


• Heating effects from bottom and sides


• Fitted with wheel.

Industrial Tray dryer Oven is an enclosed insulated chamber in which trays are placed on top of each other Only for Industrial Use.

Specification:

• Trays and chamber of a dryer can also be fabricated in Stainless Steel.


• Heavy duty trolleys can also be supplied.

We are engaged in manufacturing & supplying Hot Air Centrifugal Dryer, following & maintaining industry laid parameters. These dryers are designed specifically to cater to the diversified industrial needs and thus, are offered with the assurance of providing constant performance. We have introduced these Hot Air Centrifugal Dryer integrated with advanced working mechanism and thus, can be purchased at reasonable rates.

Features:

• Easy to maintain
• Constant performance
• Low power consumption
